Specifications

Flanges are used to connect equipment, tubes, pipes, and valves to form a complete system.
Their main advantage is the ease of assembly and disassembly during cleaning, inspection, or repair.

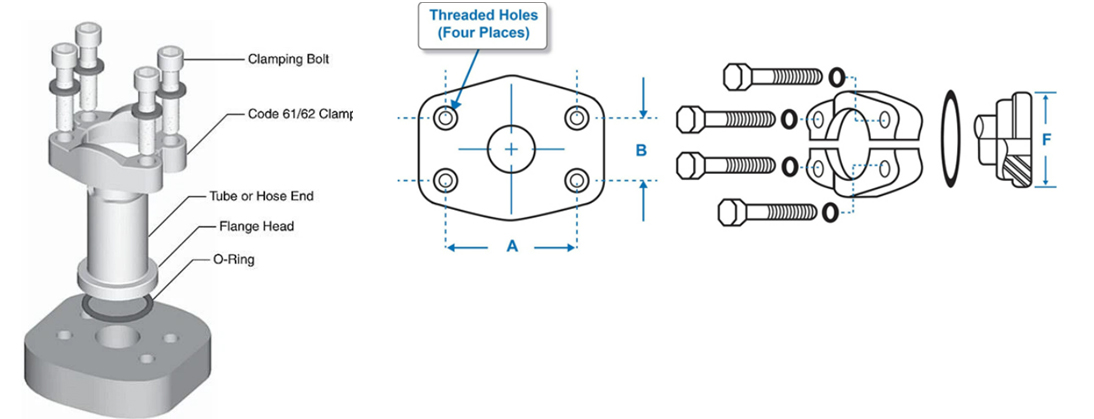

A gasket or O-ring is typically placed between two flanges and secured with bolts to ensure sealing.

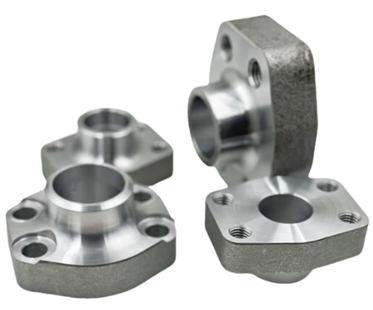

SAE flanges are manufactured in accordance with SAE J518 / ISO 6162 and are mainly used in oil-hydraulic systems.

Features

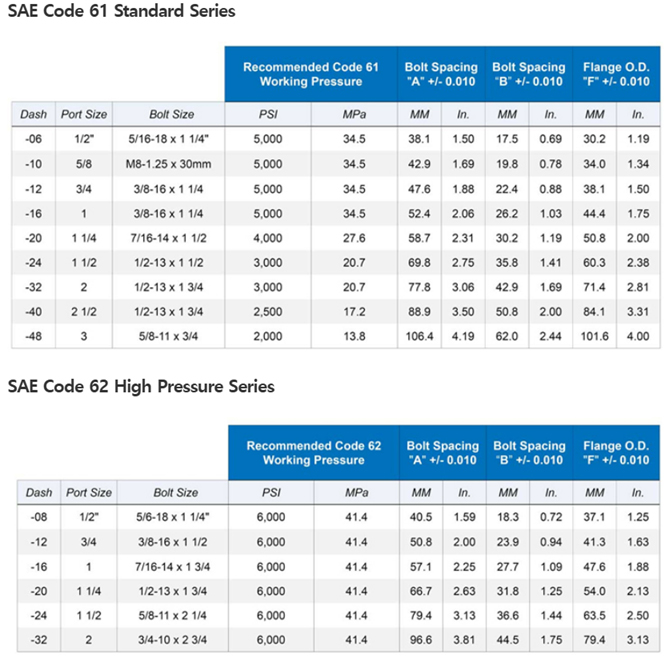

• Code 61: 3,000 ~ 5,000 PSI
• Code 62: Up to 6,000 PSI
• Size Range: 1/4" ~ 2"
• Design Standards: SAE J518 / ISO 6162
• Connection Types: Socket weld / Butt weld / NPT / BSPP
• Material: Carbon Steel
