Specifications

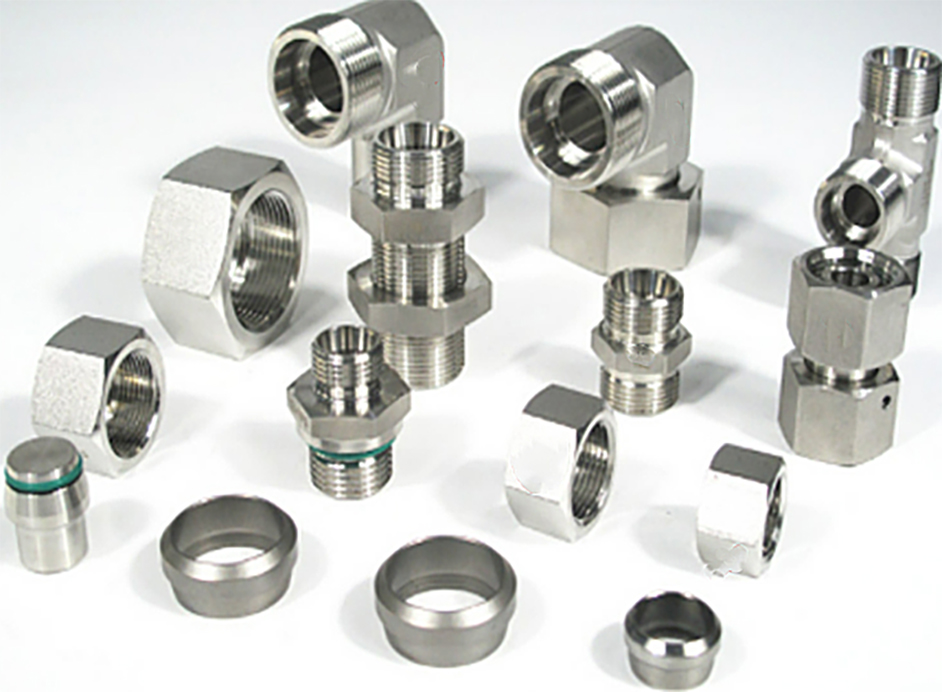

DIN-standard tube fittings are widely used across fluid control applications such as factory automation, oil & gas, and construction equipment.

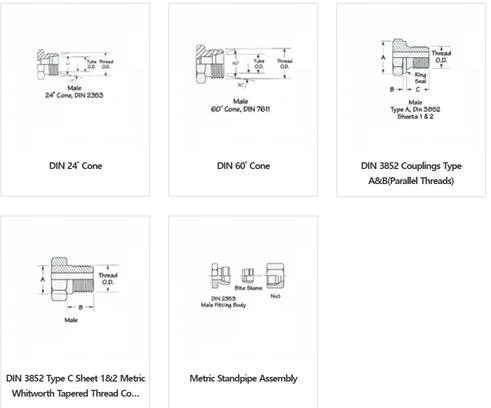

Common thread types include DIN metric threads and BSPP.
DIN tube fittings are designed and manufactured in accordance with ISO 8434-1, DIN 2353, and DIN EN 3850.

Fitting Materials & Temperature Limits

• Carbon Steel: -40°C ~ +120°C (DIN 3859)
• Brass: -60°C ~ +175°C
• Stainless Steel: -60°C ~ +400°C (DIN 17440)

Working Pressure

• Low Pressure (LL): Up to 100 bar
• Light Series (L): Up to 500 bar
• Heavy Series (S): Up to 800 bar
